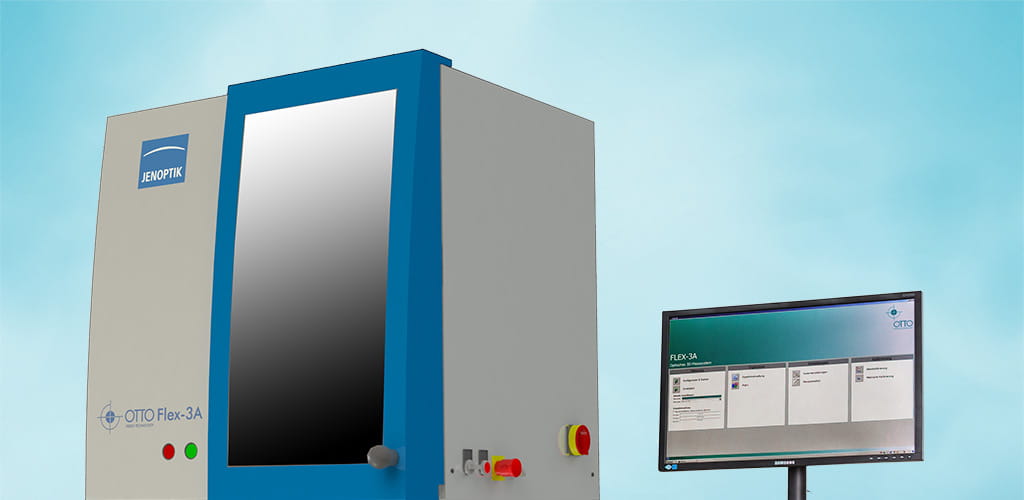

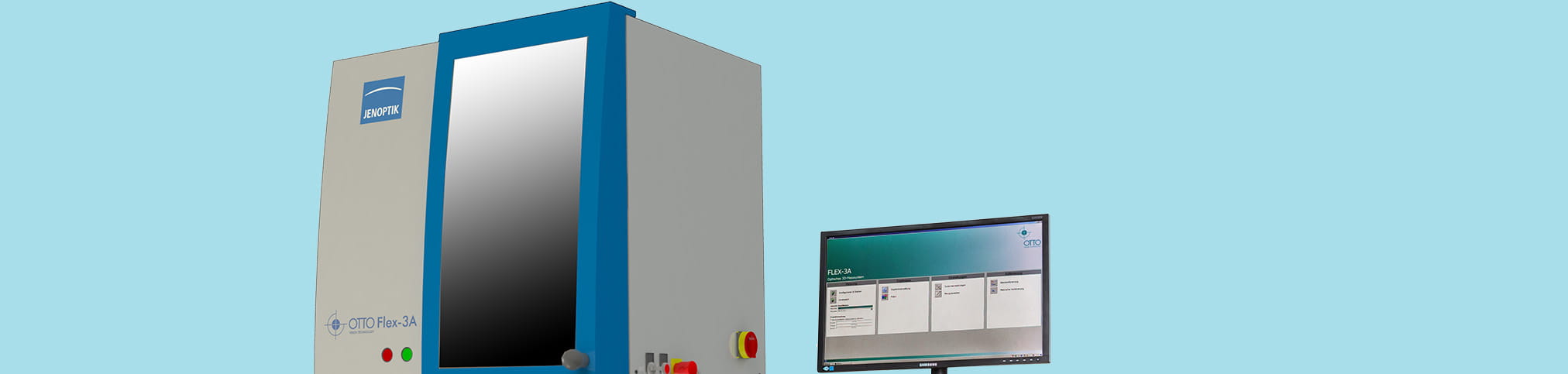

OTTO Vision FLEX-3A
Optical 3D measuring machine
The optical 3D scanners OTTO Vision FLEX-3A are based on structured-light projection technology abd offer highly accurate and automated part inspection. These machines are designed for the incoming goods department, toolmaking, initial sampling and release, as well as for automated inspection during production.
The high-resolution scan data is capable of being compared directly against a CAD model, or used for dimensional, shape, and positional tolerance measurements. With object point resolutions down to 5 um, as well as our smart multi-image referencing using virtual targets, the FLEX-3A is ideally suited for high-precision automated 3D inspection of complex small parts.
The high-resolution scan data is capable of being compared directly against a CAD model, or used for dimensional, shape, and positional tolerance measurements. With object point resolutions down to 5 um, as well as our smart multi-image referencing using virtual targets, the FLEX-3A is ideally suited for high-precision automated 3D inspection of complex small parts.
OTTO Vision FLEX-3A
Optical 3D measuring machine
The FLEX-3A product line is designed for the incoming goods department, toolmaking, initial sampling and release, as well as for automated inspection during production.
- High precison and high-resolution scan data
- Industrial measurement technology and accuracy
- Automated scanning and reporting
More information
- Camera resolution up to 12 Mio px
- Measuring field sizes from 20mm to 230mm
- Blue light projection technology
- Photogrammetric image referencing with smart camera
- Up to 4 moveable axes
- Closed industrial housing
- Traceable measuring accuracy
- Calibration monitoring and automatic recalibration
- Vibration isolation
- Windows 10 operating system
- Closed industrial housing
- Traceable measuring accuracy
- Calibration monitoring and automatic recalibration
- Vibration isolation
- Windows 10 operating system
